Gravity Vehicle

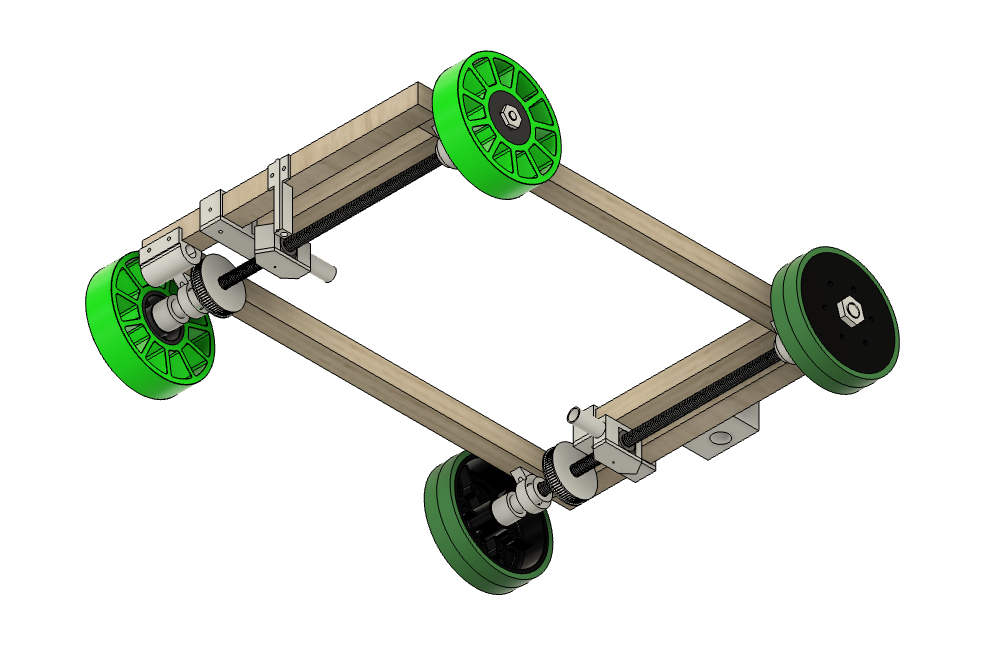

Gravity Vehicle (Major Version 1)

For the Science Olympiad—Gravity Vehicle event, I designed both the launch mechanism and vehicle for the event. Using my skills with CAD, mechanical designs, and additive manufacturing (3D printing), I was able to design and create a competitive vehicle.

The Process

Designed what the vehicle needs and the best way to incorporate it's main functionality (to stop at a specified distance as closely as possible without any assistance from electronics nor any outside influence). It was at this stage I was able to develop a rough idea of how the mechanism should work.

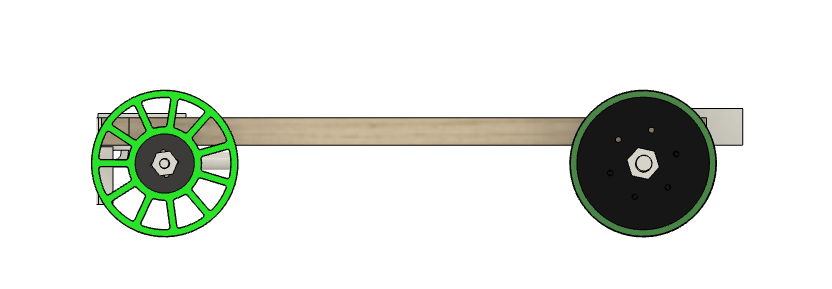

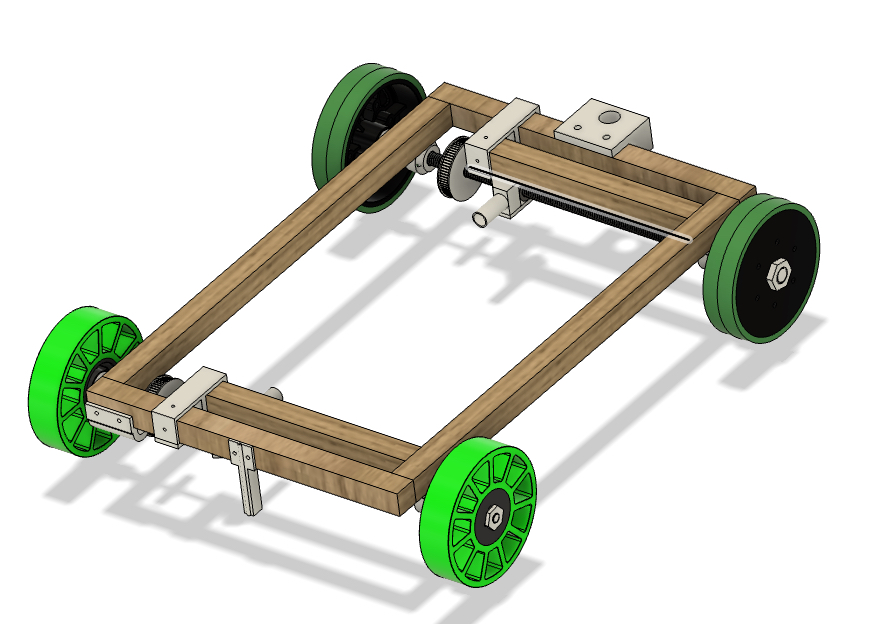

3D designed the final iteration of the vehicle on CAD. Many components, especially the complex geometrically shaped custom parts, were designed to be manufactured with FDM 3D printers, while the rest of the parts were either made with wood (due to its great specific strength) or parts found online (e.g. metal parts, drive belts, and rubber wheels).

Tuned the gravity vehicle to keep it on a strength path while also tuning the braking system to minimize the effect of the jerk (when the vehicle stops, because it uses a wingnut and a threaded rod, it will lock the wheels put almost instantaneously, causing the vehicle to experience jerk and lose traction).

The Braking System

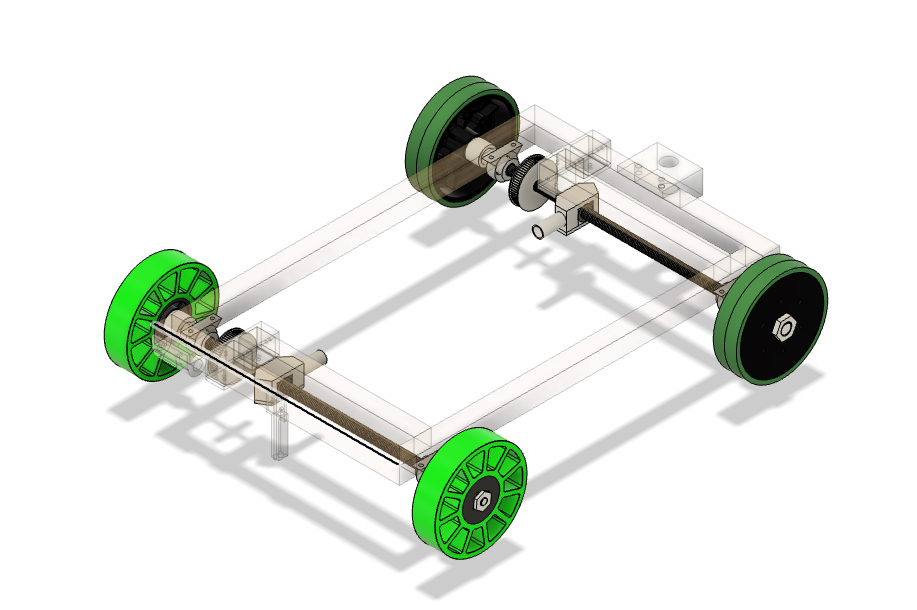

Braking System (Highlighted)

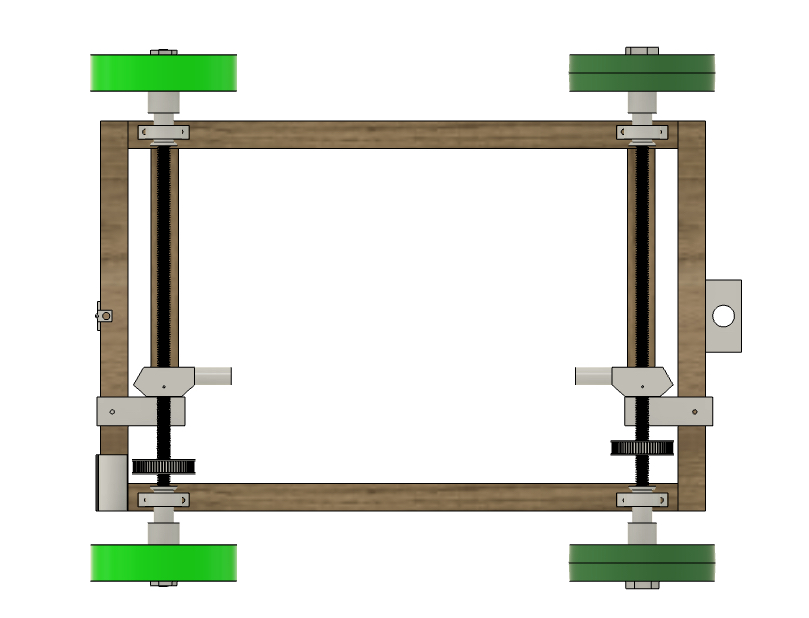

The method of braking on the vehicle is a system of threaded rods and wingnuts. Both the front and rear axle gets a pair of threaded rods and wingnuts synced with a GT2 timing belt. This ensures that all four wheels lock up after it locks itself up. The distance it travels is dictated by the following equation:
(circumference of the wheel * number of rotations unwinding from locked position).

Computer Animation of how the braking system works

The Frame

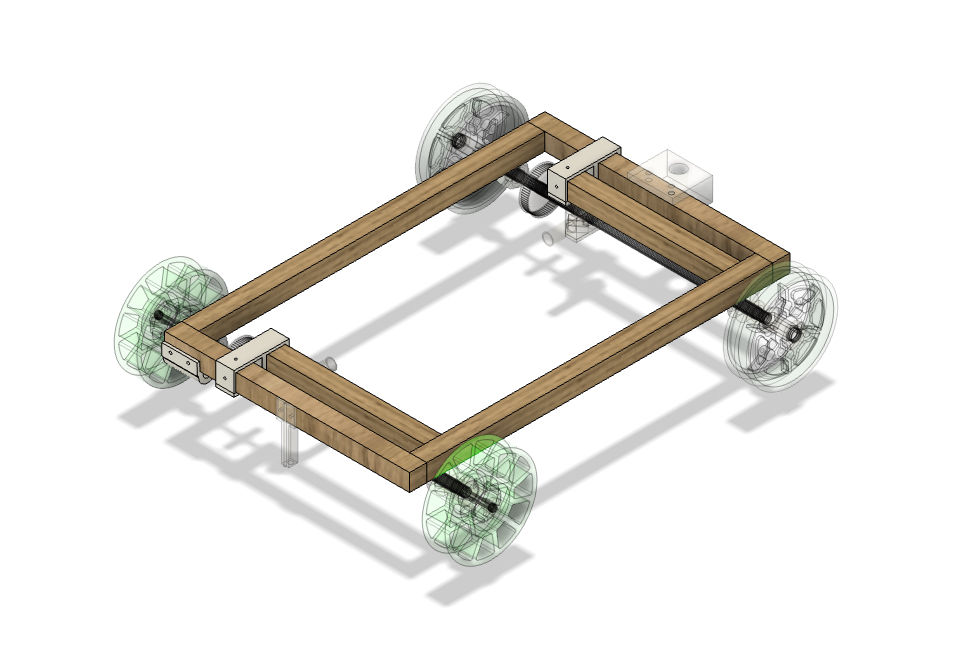

The Frame (Highlighted)

In order to save weight to meet the weight limit while still making a rigid frame, wood was used to solve both of these problems.

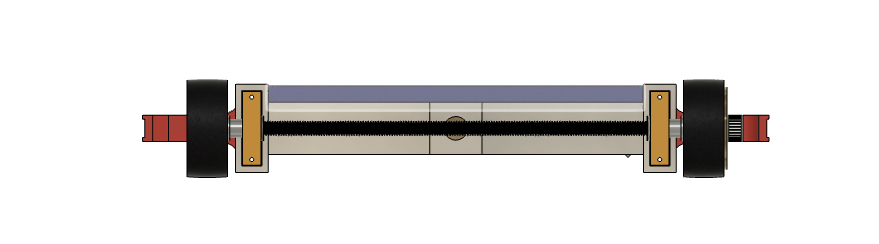

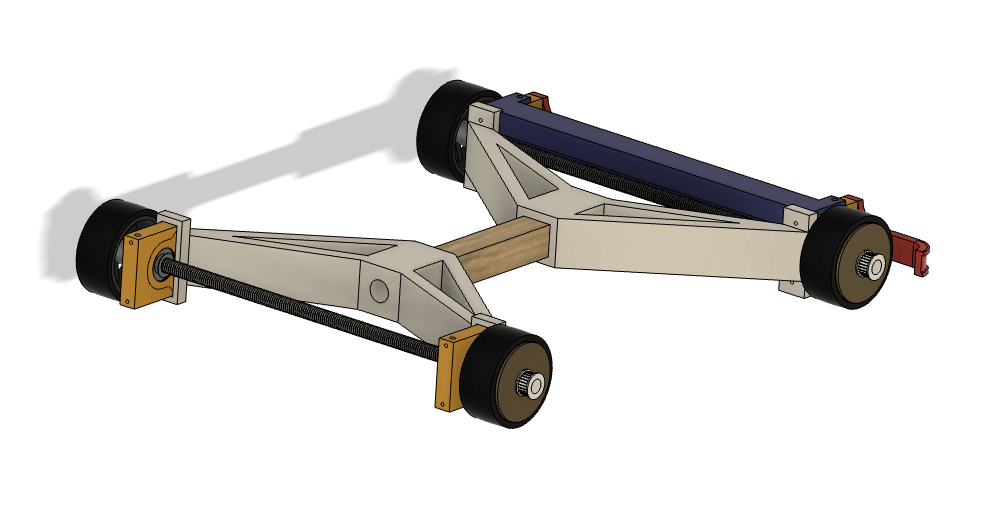

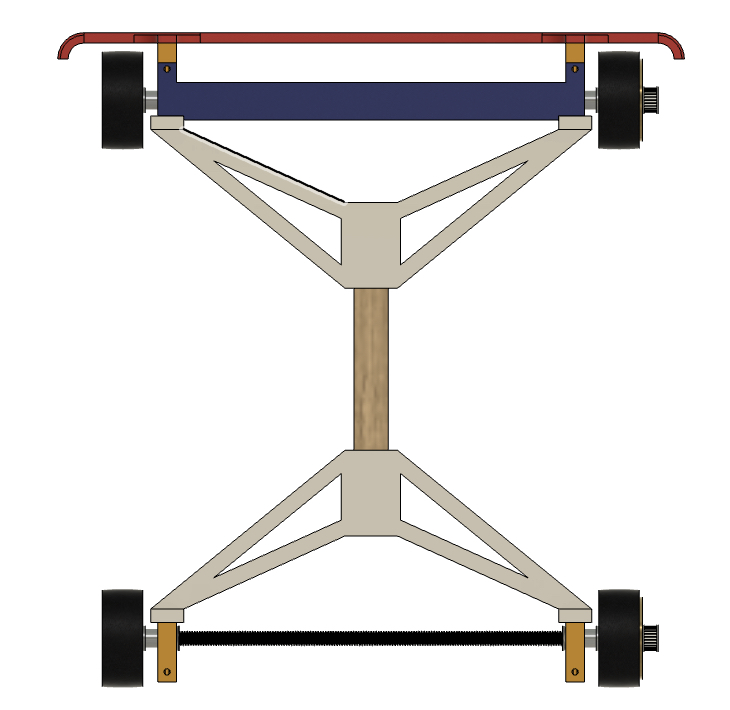

Scrambler Vehicle

For the 2022-2023 year, Science Olympiad has substituted Gravity Vehicle with Scrambler, an event that has the same premise as Gravity Vehicle but with a twist. Instead of getting as close to a certain point as possible, vehicles now must get as close to a wall as possible without crushing the egg mounted on the front.
